SD 50.140 Mounting Bracket for Industrial Automation
Mounting Bracket

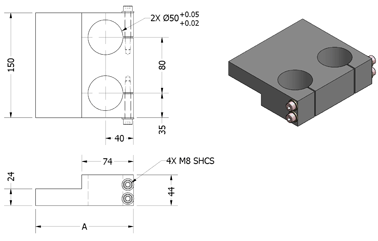

SD 50.140 - Dimension A = 140 mm
SD 50.180 - Dimension A = 180 mm
SD 50.220 - Dimension A = 220 mm
SD 50.260 - Dimension A = 260 mm
SD 50.140 2D DWG file (right click this link)
SD 50.140 2D DXF file (right click this link)
SD 50.140 3D AutoCAD file (right click this link)
SD 50.180 2D DWG file (right click this link)
SD 50.180 2D DXF file (right click this link)
SD 50.180 3D AutoCAD file (right click this link)
SD 50.220 2D DWG file (right click this link)
SD 50.220 2D DXF file (right click this link)
SD 50.220 3D AutoCAD file (right click this link)
SD 50.260 2D DWG file (right click this link)
SD 50.260 2D DXF file (right click this link)
SD 50.260 3D AutoCAD file (right click this link)
To download the 2D and 3D CAD files, right-click on the above links and choose "Save target as". Decompress the zipped archive that downloads to your computer, and open with appropriate AutoCAD software.
To achieve peak operation of precise, dynamic handling systems, a robust, vibration resistant supporting structure is essential. Only with such a structure is it possible to exploit the high repeat accuracies and speeds of the individual elements. Our ground, chromium plated single and double columns allow precise, simple clamping and adjustment of mounting plates and transverse connectors. Through the use of these standard modular components, a wide range of mounting arrangements can be easily configured.
