SE 03.300 Mounting Plate for Industrial Automation

Mounting Plate
SE 03.300 - Dimension A = 300 mm - Dimension B = 160 mm
SE 03.400 - Dimension A = 400 mm - Dimension B = 260 mm
SE 03.500 - Dimension A = 500 mm - Dimension B = 360 mm

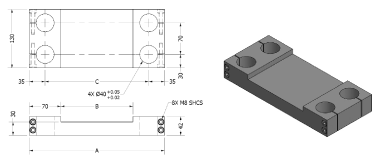

SE 03.300 Mounting Plate

SE 03.300 2D DWG file (right click this link)
SE 03.300 2D DXF file (right click this link)
SE 03.300 3D AutoCAD file (right click this link)

SE 03.400 2D DWG file (right click this link)
SE 03.400 2D DXF file (right click this link)
SE 03.400 3D AutoCAD file (right click this link)

SE 03.500 2D DWG file (right click this link)
SE 03.500 2D DXF file (right click this link)
SE 03.500 3D AutoCAD file (right click this link)

Download a PDF of the Stands, Modular Mounting Brackets and Adapter Plates section of the MF Automation Product Catalog (right-click this link).

To download the 2D and 3D CAD files, right-click on the above links and choose "Save target as". Decompress the zipped archive that downloads to your computer, and open with appropriate AutoCAD software.

To achieve peak operation of precise, dynamic handling systems, a robust, vibration resistant supporting structure is essential. Only with such a structure is it possible to exploit the high repeat accuracies and speeds of the individual elements. Our ground, chromium plated single and double columns allow precise, simple clamping and adjustment of mounting plates and transverse connectors. Through the use of these standard modular components, a wide range of mounting arrangements can be easily configured.
